General

The cmk_agent_mngmt.yml Playbook contains everything to manage the Installation and the Bakery and TLS Registrations of your Checkmk Agents. This works for Linux and Windows.

The job of the Syncer is to dynamically provide variables to the Ansible Playbook, so that Ansible always knows what to do with each Host.

Information is inventorized, for example from Checkmk itself, like on which site the host is, or if the Checkmk Agent reports TLS errors. Also, all kinds of known attributes can be used. The Syncer Rules then create all Variables for Ansible dynamically.

Functions

  • Support for Linux and Windows
  • Create Host
  • Install Checkmk Agents
  • Register Checkmk Bakery
  • Register TLS for Checkmk
  • Discover Host in Checkmk
  • Bake and Sign Agents (See Checkmk part)
  • Restart Checkmk (See Checkmk part)

Inventorize Checkmk

To get the current Status Information about the Host — like whether the Agent is in an Error state or whether the Bakery is registered — the inventory function of the Syncer is used. All Information found is added to the Syncer's Database.

The Command is: ./cmdbsyncer checkmk inventorize_hosts account.

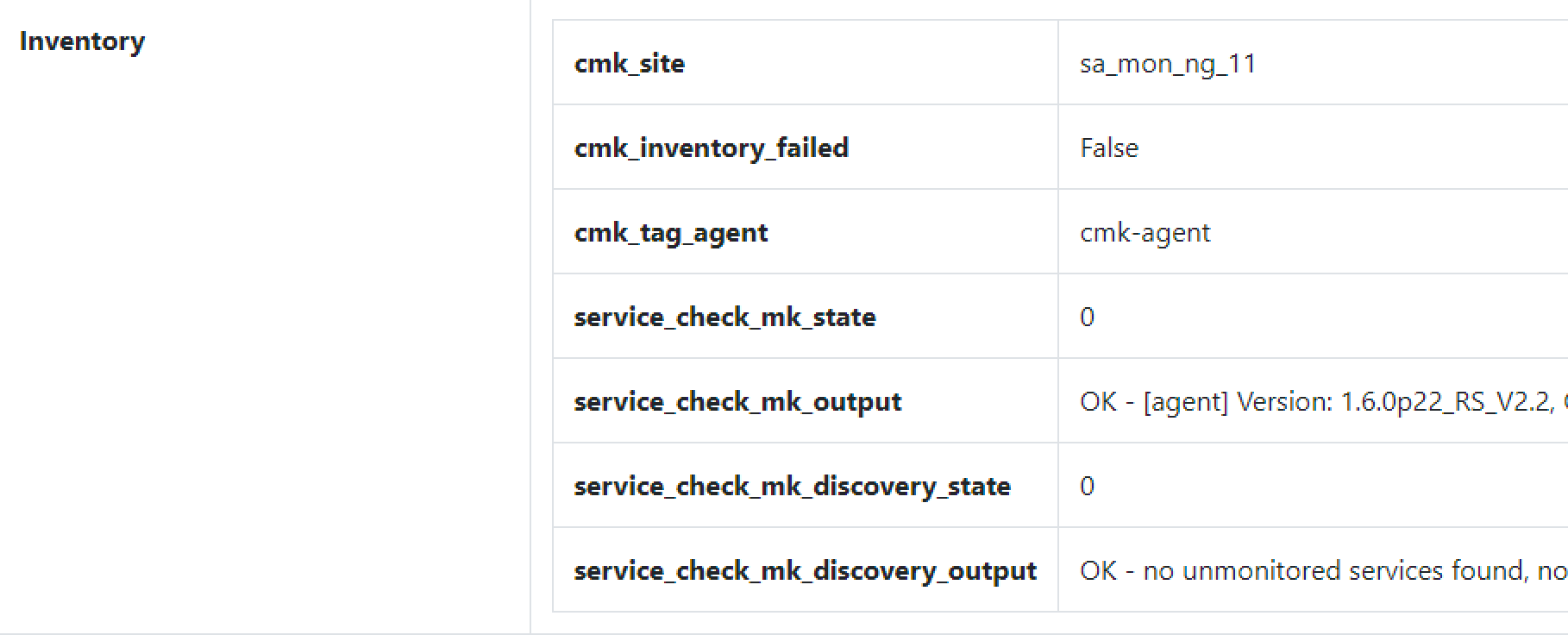

After the run, you can verify what the Inventory found: open a Host in the Frontend and scroll to inventory:

Ansible Variables

Next, you need to seed Variables and Conditions. This is necessary for Ansible to know whether an Action is due, or which Credentials to use.

The following Variables exist in the cmk_host_agent Ansible Role. You learn below how to set them:

Variable Default Description
cmk_user automation User for Auth in Checkmk and API Operations
cmk_secret — The Automation Secret for the User
cmk_main_server — Master site's address (without https:// or path)
cmk_main_site — Master site name
cmk_agent_host_name inventory name Host name reported to Checkmk (agent download, registration, host creation, discovery, downtime). See Checkmk host name differs from the inventory name
cmk_server — Local, site-specific address for Registrations (Distributed Monitoring)
cmk_site — Local site name (best rewritten from the inventory: cmk__label_site → cmk_site)
cmk_create_host False Create the Host in Checkmk
cmk_create_folder /inbox Folder for the initial creation of the host by Ansible
cmk_install_agent False True if the Agent has to be installed
cmk_register_tls False True if TLS Registration has to be done
cmk_register_bakery False True if Bakery Registration has to be done
cmk_register_central_bakery False True for Bakery Registration in a non-distributed Bakery setup
cmk_delete_manual_files False Set True to delete manually installed Checkmk files on the Server first
cmk_discover False Trigger a Checkmk Service Discovery on the Host
cmk_linux_tmp /tmp Temp dir used on Linux
cmk_windows_tmp c:\temp Temp dir used on Windows
cmk_agent_receiver_port 8000 Port for Agent TLS Registration
cmk_server_port 443 Override the default Checkmk 443 port
cmk_agent_port 6556 Agent port (for the firewall config)
cmk_server_ip False Use an IP instead of a Hostname when DNS is not available; also needed for the firewall config
cmk_main_server_ip False Master server IP for DNS-less setups
configure_firewall False Enable Firewall Configuration for RedHat
cmk_agent_configure_firewall_zone public Firewall zone to open the agent port in
validate_certs True Validate Certificates for HTTP Calls

Some of these are already part of the Inventory after you inventorized Checkmk, others are hardcoded (like Credentials). And finally, there are condition-based ones, like cmk_register_bakery, which should only be true if the registration is missing.

Seed a rule set with one click

To start quickly, open Rules → Ansible → Rules by Project, pick (or create) a project, and click Checkmk Agent rules. This creates a small, orthogonal rule set — one action per rule, each triggered by exactly the Checkmk signal that makes that action necessary:

Rule Match type Condition (Checkmk service output) Sets
Agent Base Config anyway always all static variables; every action false
Install Agent any Check_MK reports [agent] Empty output or [agent] Communication failed (agent missing/unreachable) cmk_install_agent
Register TLS all Check_MK reports TLS is not activated on monitored host cmk_register_tls
Register Bakery all Check_MK Agent (updater) reports the host is not registered cmk_register_bakery
Run Discovery all Check_MK Discovery reports unmonitored services cmk_discover

The rules converge step by step: a broken host first gets the agent installed, and on the next inventorize the TLS / bakery / discovery signals appear and their rules fire. The base rule (sort 0) supplies the defaults; each action rule (sort 10+) flips only its own flag where its condition matches. All rules are created disabled — treat them as a template: adapt the server and credential values, verify the conditions against ./cmdbsyncer ansible debug_host HOST (Checkmk's exact wording varies by version), then enable them. Re-running the seed only fills in rules that don't exist yet, so your edits are never overwritten.

Alternatively, you can seed a set of default rules from the command line:

./cmdbsyncer rules import_rules ./example_rules/ansible_cmk_rules.py

Syncer Configuration

Settings

You can set which Hosts you want to manage via Ansible, or deploy custom Variables to some Hosts with the Ansible Rules. The normal Filter and Rewrite Functions also apply here.

The Conditions are configured in: Rules → Ansible → Ansible Attributes

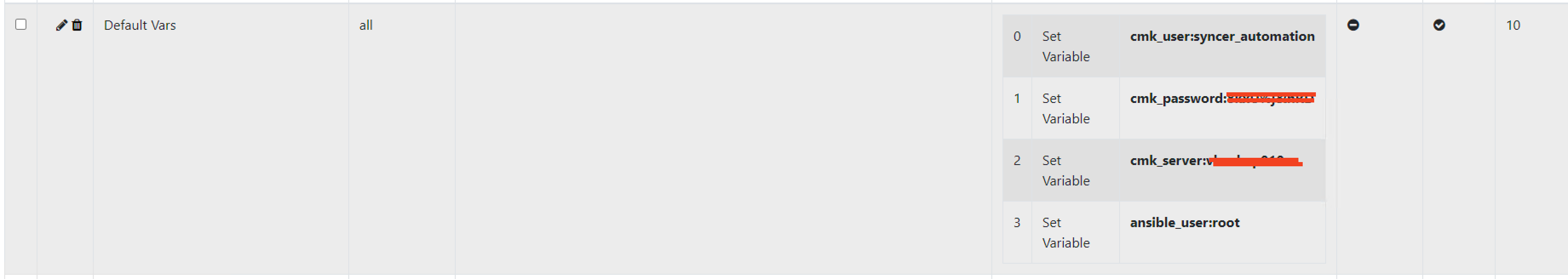

To set the Credentials Ansible should use to contact Checkmk, see here:

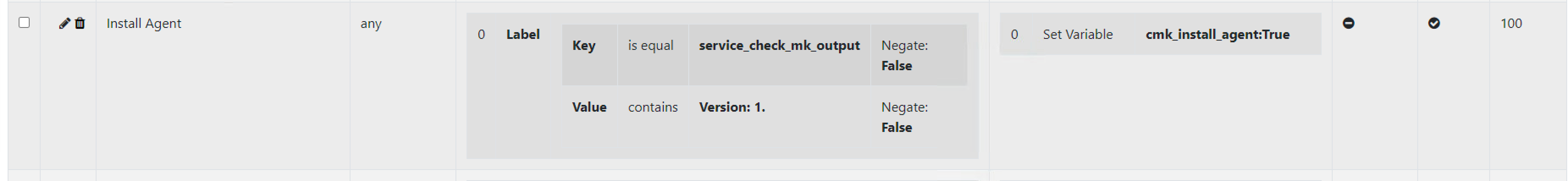

Example of how to Install the Agent when a given Service Output was found:

Likewise, you can configure whether to register to the bakery or the TLS. Filter, for example, for the TLS Error message in the Service Output. Best is to seed defaults as described above, so you have more examples which just need to be adapted a bit.

Passwords and Account Data as Variables

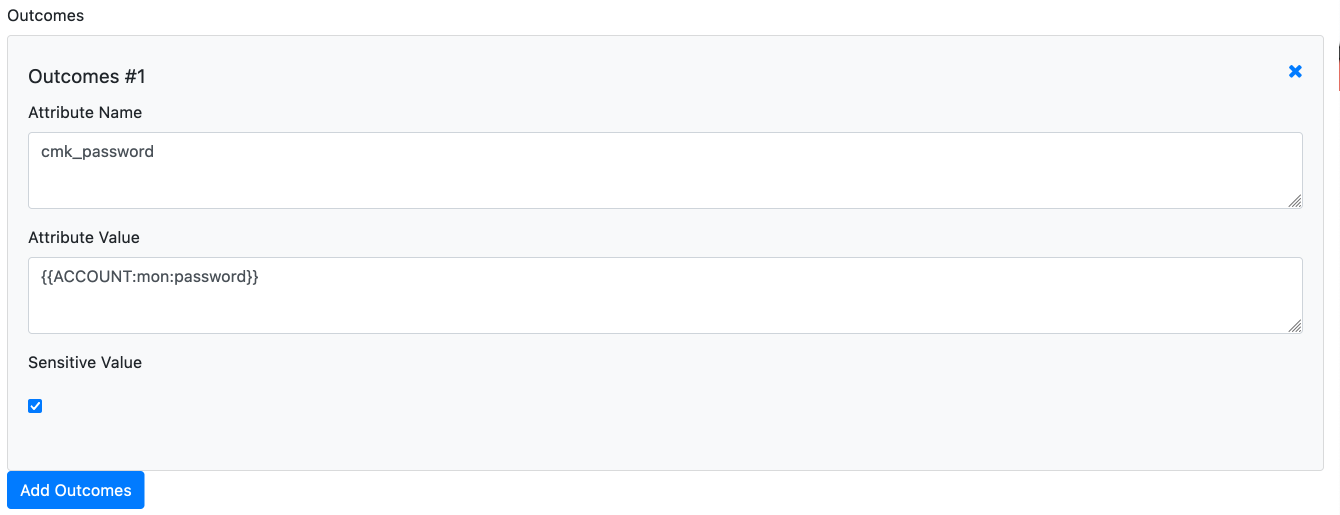

You don't need to set the Password value directly in the settings, you can also read it from your Accounts. For that, instead of the Password, just Enter the Macro: {{ACCOUNT:NAME:password}}. Account needs to be uppercase, Name is the Account Name, password can also be every other field or custom field in your account Settings.

RedHat Firewalls

You can configure the Firewall Zones and the Checkmk Server IPs to let the Syncer configure the Firewall for you.

You just need to set configure_firewall and also the cmk_server_ip

Run the job

Debugging

Before you run anything in Ansible, use the debug_host feature to check if the Outcome is what you want: ./cmdbsyncer ansible debug_host HOSTNAME The command will tell you all variable outcomes you will have in Ansible.

Ansible Command

ansible-playbook -i inventory cmk_agent_mngmt.yml

Please just replace the inventory source if needed.

The playbook only works on hosts with at least one step switched on: cmk_install_agent, cmk_register_tls, cmk_register_bakery, cmk_register_central_bakery, cmk_create_host, cmk_discover, cmk_delete_manual_files or configure_firewall. Every other host is skipped before Ansible connects to it, so a run over the whole inventory only touches the hosts that need something.

Errors

The steps that send the Checkmk credentials run with no_log, which hides their whole result. If such a step fails, the next task, named after the step with failed appended (e.g. Register Agent for TLS failed), prints the error message of Checkmk or of the agent command, with cmk_secret replaced by ********. On Linux the run continues with the next step; on Windows the failed host stops there.

Windows Clients and Kerberos

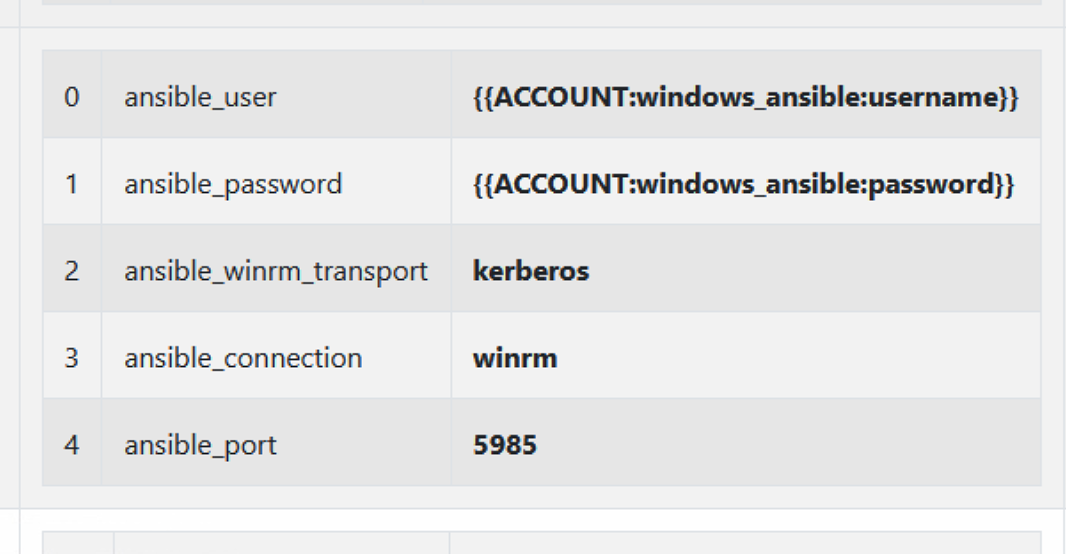

If you have your Linux Server prepared for Kerberos, you can use it with the Syncer to Update/ Install/ Register Windows Agents. This is the Settings you will need for that:

Hosts without domain in their name

If your hosts are stored in the Syncer with their short name (srv01 instead of srv01.corp.example.com), the WinRM connection with Kerberos fails and Ansible reports the host as unreachable:

kerberos: authGSSClientStep() failed: (('Unspecified GSS failure.  Minor code may provide more information', 851968), ('Server not found in Kerberos database', -1765328377))

Kerberos requests a ticket for the service principal HTTP/<hostname>. Active Directory only knows the server by its fully qualified name, and Kerberos does not append the DNS search domain, so HTTP/srv01 is not found.

Workaround: create a rule in Rules → Ansible → Ansible Attributes that sets the custom variable ansible_host to the FQDN. The hostname is available as {{ HOSTNAME }}:

Variable Value
ansible_host {{ HOSTNAME }}.corp.example.com

The inventory hostname stays short, while Ansible connects to the FQDN and builds the Kerberos principal from it. Limit the rule with a condition to your Windows hosts. Check the result on the Debug page of the host (target Ansible) or with ./cmdbsyncer ansible debug_host srv01.

Alternatives:

  • Set ansible_winrm_kerberos_hostname_override to the same value instead. This only changes the Kerberos principal and keeps the connection target as it is.
  • Set dns_canonicalize_hostname = true in the [libdefaults] section of /etc/krb5.conf on the Syncer server. This depends on clean forward and reverse DNS entries for all hosts.

Checkmk host name differs from the inventory name

The roles tell Checkmk the host name in several places: the agent download, the TLS and Bakery registration, the host creation, the service discovery and the downtime of the server update. They use the variable cmk_agent_host_name for that. It defaults to the inventory name, the name of the host in the Syncer, so nothing changes as long as both names are the same.

ansible_host only decides where Ansible connects to. cmk_agent_host_name only decides which name Checkmk sees. Set them independently with a rule in Rules → Ansible → Ansible Attributes, limited by a condition to the hosts concerned:

Short name in the Syncer and in Checkmk, FQDN needed for the connection (the Kerberos case above): set only ansible_host. The host stays srv01 in Checkmk.

Variable Value
ansible_host {{ HOSTNAME }}.corp.example.com

Short name in the Syncer, FQDN in Checkmk: set cmk_agent_host_name as well, so the agent is downloaded and registered for srv01.corp.example.com.

Variable Value
ansible_host {{ HOSTNAME }}.corp.example.com
cmk_agent_host_name {{ HOSTNAME }}.corp.example.com

FQDN in the Syncer, short name in Checkmk: Ansible already connects to the FQDN, only the name for Checkmk is cut down to its first label.

Variable Value
cmk_agent_host_name {{ HOSTNAME.split('.')[0] }}

Use the .split('.')[0] spelling: the Syncer renders the value itself, and its Jinja has no split filter, so {{ HOSTNAME | split('.') | first }} comes out empty. Check the rendered values on the Debug page of the host (target Ansible) or with ./cmdbsyncer ansible debug_host srv01.

Known Problems

Windows: Missing required argument: _raw_params

The Windows tasks need the Ansible collection ansible.windows in version 1.11 or newer. An older one stops the TLS and Bakery registration with:

Get-AnsibleParam: Missing required argument: _raw_params

The Syncer image and the pip installation bring a current version. The old one usually comes from a copy in ~/.ansible/collections or /usr/share/ansible/collections, which Ansible prefers. Check which version is used and update it:

ansible-galaxy collection list ansible.windows
ansible-galaxy collection install 'ansible.windows>=1.11' --upgrade

Distributed Bakery not supported yet in API

The Checkmk API currently can't reflect a Distributed Setup. Therefore Ansible fails to Download Agents from a remote site. As Workarround you can set an Apache Reverseproxy Rule, to Forward only the Bakery API Requests to the Main Site.

SSLProxyEngine On

SSLProxyCheckPeerCN off

RewriteEngine On

RewriteRule /sitename/check_mk/api/1.0/domain-types/agent/(.*)$ https://mastersite/sitename/check_mk/api/1.0/domain-types/agent/$1 [P]

This config must be put into the VirtualHost config for Port 443 on your remote Site.
